Kit sensor module SM-V/B "PLX Devices" (avec sensor intégré, 30PSI/3.0Bar)

Nouveau produit

Kit sensor module SM-V/B "PLX Devices" (avec sensor intégré, 30PSI/3.0Bar).

Plus de détails

1 - 2 semaines

129,99 € TTC

Ajouter à ma liste d'envies

En savoir plus

Kit sensor module SM-V/B "PLX Devices" (avec sensor intégré, 30PSI/3.0Bar).

Ce kit en adéquation avec les indicateurs MultiGauges™ DM-6/DM-100 OBDII/

DM-100 OBDII Touch/DM-200 OBDII, vous permettra de lire instantanément

la pression de turbo.

Overview

The PLX Vacuum / Boost Sensor Module accurately measures the vacuum pressure

and boost pressure of any intake manifold. This is ideal for turbo and supercharged

applications where monitoring the intake pressure is vital. Up to 32 Sensor Modules

can be daisy chained together in the PLX iMFD system and can be connected to any

PLX Multi Gauge through the digital serial output port such as the DM-6 or DM-100.

The Vacuum / Boost Sensor Module can also be used as a stand alone unit capable

of interfacing with 3rd party hardware where both the digital output and the analog

output are available simultaneously. Its measurement range is 30.5 inHg to 30 PSI

or 760 mmHg to 2.11 Kg/cm2.

Technical Specifications

Physical Dimensions2 x 2.875 x 1.125" (52 x 75 x 28mm) L x W x H
Technology Active Sensor Control Technology
Accuracy< 0.25 PSI
Measurement Range30.5inHg - 30 PSI (760mmHg - 2.11kg/cm2)

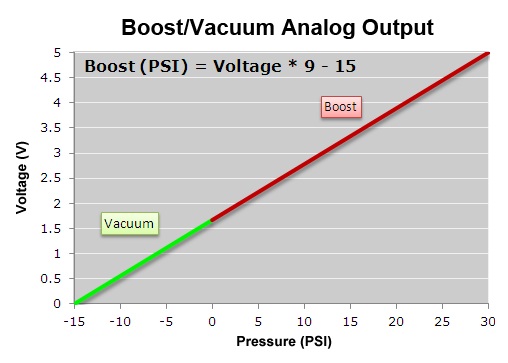

Analog OutputsLinear 0-5V (Driving Current 20mA)
Operating Voltage8V-18V
Power Consumption0.3 Watts
Operating Temperature0 - 85 Degrees Celsius
Sensors3 Bar MAP Sensor
EnclosureExtruded Aluminum

Included Items

- SM-V/B main unit.

- Power wire with 2.10mm connector 4ft (1.20m).

- Analog wires and connector with 4 terminals 4ft (1.20m).

- Serial Cable 1ft (30.47cm).

- Termination jumper.

- Pressure sensor is built-in.

- User Manual.
